Apron Edge Line Marking

Sabtu, 30 Januari 2021

Uk dan ukuran aircraft stop line marking Bentuk dan ukuran aircraft stop line marking. Garis kuning di sepanjang tepi apron untuk menunjukkan batas tepi apron Parking Stand Number Marking.

Https Www Icao Int Sam Documents Grepecas 2011 Grpagaaop8 Agaaopsg08wp14rev Pdf

Surface Painted Holding Position.

Apron edge line marking. Dashed taxiway edge markings consist of a broken double yellow line with each line being at least 6 inches 15 cm in width spaced 6 inches 15 cm apart edge to edge. 17112004 A NO ENTRY marking is a mandatory instruction marking according to ICAO Annex 14 Volume 1. These markings are used when there is an operational need to define the edge of a taxiway or taxi-lane on a paved surface where the adjoining pavement to the taxiway edge is intended for use by aircraft.

18032013 Apron Edge Line Marking. These markings are used when there is an operational need to define the edge of a taxiway or taxilane on a paved surface where the adjoining pavement to the taxiway edge is intended for use by aircraft for example an apron. Bentuk dan ukuran parking stand number SNI 03-7095-2005 27.

Like runways taxiways and aprons may be outfitted with paved shoulder areas to prevent erosion from jet blast or stormwater. 118 On sealed concrete or asphalt aprons the helicopter apron edge marking is to consist of two continuous lines 015m wide 015m apart and painted light blue. Supplements elevated holding position signs.

20042015 Shoulder Marking Markings are in the form of yellow stripes 90cm wide and 30m apart 15m at turnings The markings extend up to a maximum 15m from the outer edge of shoulders Runway shoulders are marked with diagonal lines 45 degrees angle whereas taxiways and holding apron shoulders are marked with stripes perpendicular to the direction of aircraft. 5213 Apron safety lines 5214 Road-holding position marking. These markings are used when there is an operational need to define the edge of a taxiway or taxilane on a paved surface where the adjoining pavement to the taxiway edge is intended for use by aircraft eg an apron.

Taxiway edge markings are used to delineate the edge of the taxiway. They are used when the taxiway edge does not correspond with the edge of the pavement and where the full strength pavement of the taxiway is not readily visible. Located along twy edge where contiguous paved surface or apron is intended for use by aircraft.

Bentuk apron edge line marking. Tanda di apron berupa garis-garis merah yang. Dashed taxiway edge markings consist of a broken double yellow line with each line being at least 6 inches 15 cm in width spaced 6 inches 15 cm apart edge to edge.

Required where hold line exceeds 200. Denotes entrance to runway from a taxiway. ACI input to ICAO Annexes and Guidance Material in the Safety.

Thanks to hosts speakers sponsors and delegates. Vehicles aircraft and people using the apron are referred to as apron traffic. Consist of a broken double yellow line with each line being at least 6 inches 15 cm in width spaced 6 inches 15 cm apart edge to edge.

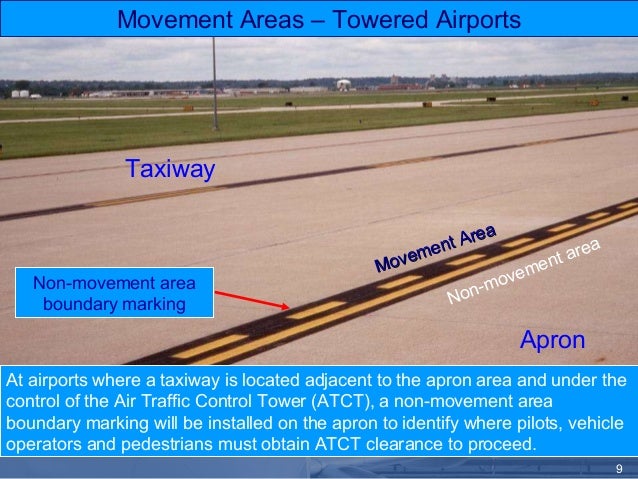

These markings are used when there is an operational need to define the edge of a taxiway or taxilane on a paved surface where the adjoining pavement to the taxiway edge is intended for use by aircraft eg an apron. The apron taxiway centre line marking will provide guidance for taxiing to the point on the apron where aircraft stand markings begin. These markings consist of a broken double yellow line with each line being at least 15 centimetres 6 in in width spaced 15 centimetres 6 in apart edge to edge.

Helicopter apron edge markings 117 Helicopter apron edge markings are to be provided when it is necessary to define clearly apron areas allocated specifically for helicopter parking. Continuous taxiway edge markings are used to identify the taxiway. Tanda di apron berupa huruf dan angka yang berwarna kuning dengan latar belakang hitam yang berfungsi sebagai penunjuk nomor tempat parkir pesawat udara Aviobridge Safety Zone Marking.

The taxiway centre line marking will be a continuous yellow line 20 cm wide with a 10-cm black border. Bentuk apron lead-in dan lead out- line marking. Dashed markings define the edge of a taxiway on a paved surface where the adjoining pavement to the taxiway edge is intended for use by aircraft eg.

UFC 3-260-04 16 May 2018. Place the innermost edge of each stripe a distance from the centerline equal to half the wingspan of the most demanding aircraft that uses the taxilane plus the appropriate wingtip clearance required by UFC 3-260- 01 Table 61 item s 5 or 6. Dashed taxiway edge markings consist of a broken double yellow line with each line being at least 6 inches 15 cm in width spaced 6 inches 15 cm apart edge to edge.

APRON MARKINGS AND SIGNS ACI WORLD SAFETY SEMINAR Beijing 18-19 November 2008 David Gamper Director Safety. Apron taxiway centre line marking and apron edge marking 21. 13022017 For example a no-taxi island will be bordered by a continuous taxiway edge marking while a dashed taxiway edge marking would be used to denote a taxi route along the outer edge of an apron.

18072013 Apron is the paved area for parking of aircraft loading and unloading of passengers and cargo the refueling servicing maintenance and parking of aircraft and any movement of aircraft vehicles and pedestrians necessary for such purposes. Apron and taxiway markings for aircraft 4 21 stand lead-in line taxiway and taxilane centre line 4 22 stand lead-in lines for multiple aircraft type parking stands 5 23 apron and taxiway edge 6 24 maximum wingspan marking 8 25 no entry marking 9 26 alternative aircraft stand taxilane 10 261 option 1 11 262 option 2 11. Bent 28 28 29 30 Bentuk dan ukuran stand number yang terletak di ujung stand centre line.

Defines taxiway edge where adjoining pavement is usable. Taxiway edge markings are yellow and can either be continuous or dashed. It shall be located on the left hand side of a.
